Cooling

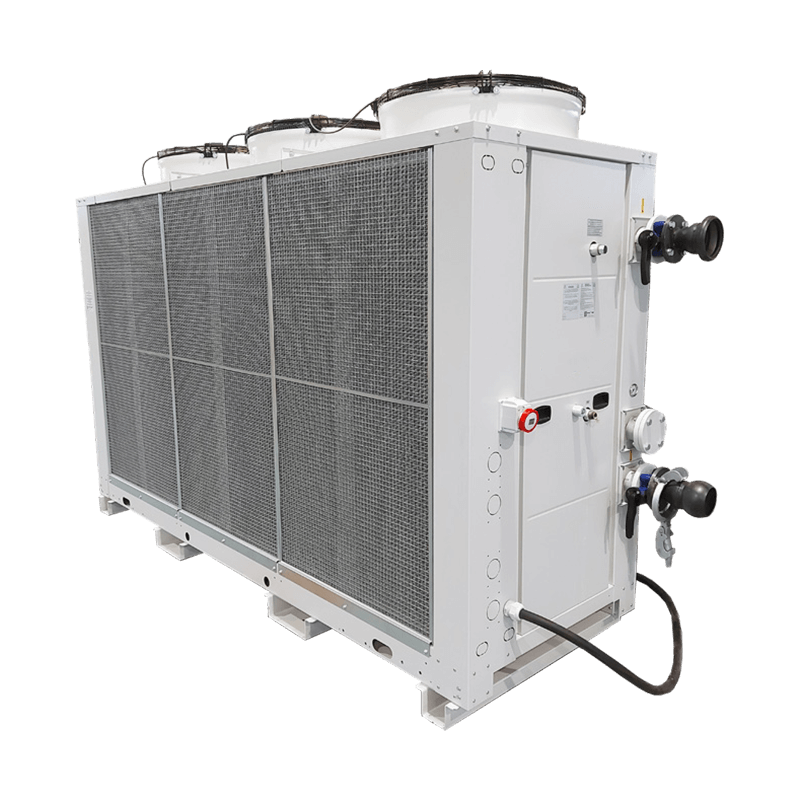

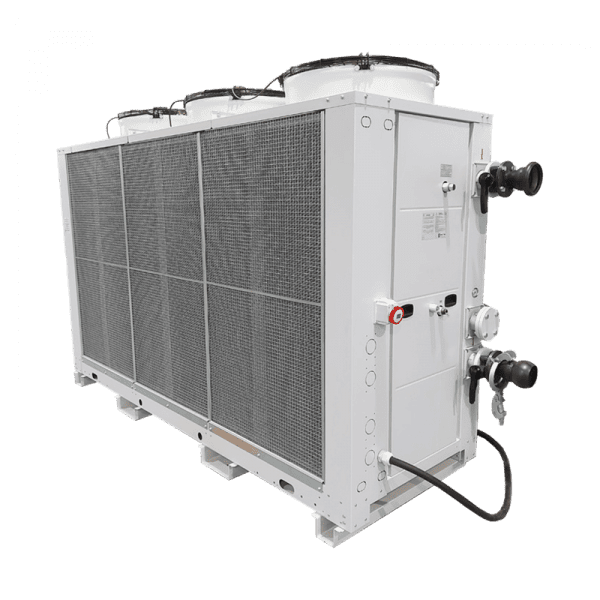

160kW Chiller
Aircooled chiller with scroll compressors and coaxial evaporator
- Large volume coaxial evaporator, ideal for process operations (4kW-75kW models)
- The 160kW unit has a large shell and tube evaporator and 400 litre tank
- Excellent EER (energy efficiency ratio) co-efficiencies
- Integral manual bypasses, helps with ease of commissioning
- Y-strainer on every unit, protects chillers and your process from fouling
- An entirely packaged unit, can be modified for non-ferrous applications
- Built in option of a high-pressure pump
- Controls are very simple, making set up quick and easy
- Vented or pressurised option as standard – no modifications necessary
- If not using the internal pump there is a dedicated feed on the evaporator to run a high-pressure pump, entirely excluding the internal pump
Specification
Cooling Capacity | 159 kW |
---|---|
Design Conditions | Ambient: 30°C / Entering: 12°C / Leaving: 7°C |
Energy Efficiency Ratio | 3.39 kW |
Refrigerant Gas | R-410A |
Type of Evaporator | Coaxial |
H x W x D | 2205 x 1105 x 3355 mm |
Weight | 1260kg (empty) |
